Screw Thread Charts

American National Form Thread Charts

Charts are available for all pitches from 4 thru 80 that are included in American National coarse-thread and fine-thread series. Pitches included are: 4, 4½, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 20, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72 & 80 except for class IV which ends with 28 pitch (none higher). The tolerances shown are taken from the coarse and fine series.

optical comparator

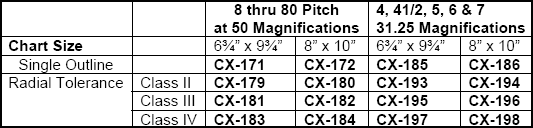

To order these charts, merely add the pitch to the CX # designating size of chart, type of outline (single outline or radial tolerance) and class of tolerance if applicable. For example: for inspecting a 28 pitch Class II thread using a radial tolerance 8” x 10” chart, the chart number is CX-180-28.

Radial Tolerance Charts

The Universal V-Block Stage is recommended for use in conjunction with Radial Tolerance Thread Charts. The stage is an adjustable V-Block and clamping fixture. It is particularly well suited for staging thread parts to project and inspect radial, or one-half the full diameter tolerances on major and minor diameter, as well as pitch diameter. Centers may also be used to stage parts when using Radial Tolerance Charts.

optical comparator

Standard Unified Miniature Thread Charts
With Full Diameter Tolerances at 100 Magnification

optical comparator

Radial Tolerance Charts

To order these charts, find the chart size to be used. Choose the tolerance class of thread to be inspected. The CX number at the intersection is the key. The size and pitch added to this key number complete the chart order number. For example: On an 8” x 10” Chart size, a Class IIA thread is to be inspected. From this information the key number is determined to be CX-163. The thread is ¾”, 10 pitch, and is written ¾-10. The order number, therefore, is CX-163-¾-10.

SIZE AS WELL AS PITCH MUST BE SPECIFIED.

6¾” x 9¾ - CX-160 8” x 10” – CX-161
To order these charts, merely add thread size designation to the CX number given. These charts show full P.D. tolerance.

optical comparator

Single Outline
To order these charts, merely add pitch to the CX number designating
magnification and size. Charts are available for all UNF or UNC
threads from 4 thru 80 pitch.

Note Charts for pitches 4 thru 7 are available for 31.25X Charts for pitches 8 thru 80 are available for 50X

optical comparator

Combination Thread Charts

Combination thread charts are extremely practical for inspection National or Unified form threads. They show root and crest form, these charts do not shoe tolerance outlines; however, tolerance can be estimated reliably by using the measuring equipment of the Comparator if so equipped. These charts can be used for tap inspection.

optical comparator

50X Thread Charts for MIL-S-8879A (UNJ) MIL-S-B-7838B (UNR or (UNK)

A military screw thread standard has been adopted by the U.S. Government. Three 8” x 10” Charts are offered for MIL-S-8879A and MIL-B-7838B. They provide a composite check of radii, blending and minor diameter, as defined by the space between the chart tolerance lines. The UNK thread is identical to the UNR form except that the root radius and minor diameter must be controlled. The root radius can be measured with an optical comparator.

optical comparator

Pitch UNJ
50X Chart
UNR or UNK
50X Chart
8-13 CX-544 CX-550
14-28 CX-545 CX-551
32-56 CX-546 CX-552

8 Thru 56 Threads per Inch

optical comparator

UNJ-50X-CX-615

American National Pipe Thread Charts

Pipe thread charts can be furnished for all standard pitches in the following categories: ¾” taper per foot, Standard, Dry Seal A complete inspection of thread form can be made with each of these pipe thread charts, using centers or V-Blocks to stage the work. The taper angles of the National Taper Pipe Thread and the National Pipe Dry Seal Thread can be inspected for errors readily by moving the comparator table laterally and using the secondary outline forms, as shown in the chart illustration.

To find the correct chart, select the size chart desired, magnification, and type thread. At the intersection of the magnification and type of thread columns in the chart size section chosen, the correct CX-master number will be found. The addition of the pitch desired as a dash number will complete chart order number. For example-a 10” x 12” chart for 14 pitch American Straight Pipe thread at 50X magnification should be ordered as CX-438-14.

opticalcomparator

Root and Crest thread Charts

Thread Root and Crest Charts are widely used by manufactures of ground thread taps to determine the rate of grinding wheel breakdown. These charts can be used on American National Form or Unified Threads from 7 thru 80 pitch.

optical comparator

Acme Standard Thread Form Charts - Single Outline

To find the correct chart select the size chart and magnification desired. Directly below magnification will be found the master CX number. Below the CX number the pitch is the dash number added to the CX number, forming the correct order number. For example: A 10” X 12” chart for 8 pitch Acme at 50X magnification should be ordered as CX-409-8.

optical comparator
